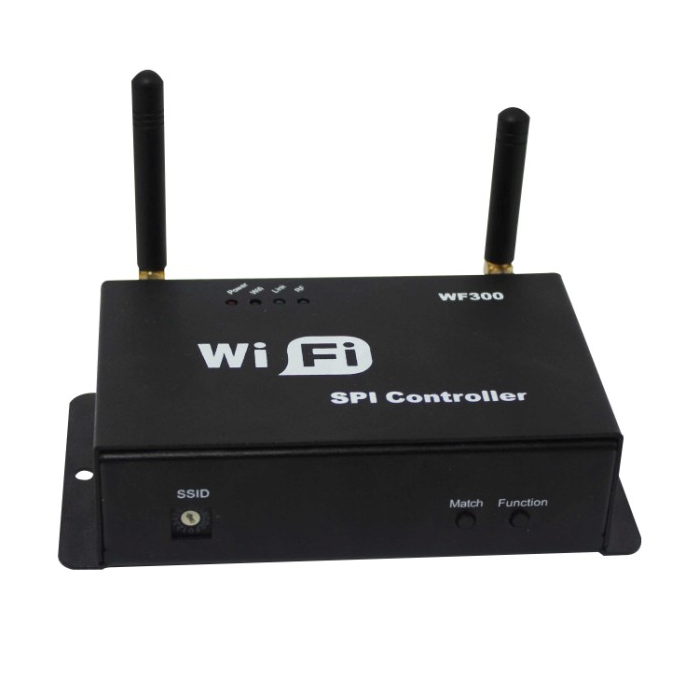

WF300 WiFi SPI DC 5-24V Leynew LED Controller
Specifications:
1. Remote control technical parameters
Working temperature:-20-60°C
Power supply method:AAA*3(not include)
Supply voltage:1.5V*3
Standby power:0.015mW
Standby current:3uA
Working current:200uA
Emission current:10mA
Remote control distance:about 30m
Standby time:6 month
2. Software technical parameters
Name:Magic Color
Runtime platform: Android version support Android system(better one can support Samsung, HTC),IOS version support IOS system, equipment must have WiFi function.
Language: English
Category: communications
Free, green, no plug-ins
3. Controller technical parameters
Working voltage: DC5--24V
Output control: SPI signal output
Output current: 4A*3
Connect mode: SPI signal wires(DATA, CLK)
External dimension: L107*W65*H30(mm)
Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g OFDM(-15dBm)
Product constitute:
1. LED-WiFi Controller
It is the core of product, responsible for receive control signal and control LED equipment.
2. RF remote control
In the condition of not use the mobile phone as remote control, you can choose RF remote control to control LED.
3. A disk
Include IOS operating system and Android operating system mobile soft.
Summarization
LED-WiFi controller is following the traditional with infrared, RF technology controller foundation,
it is birth of market and customer's demand, it is one type controller which integration
the newest wifi technical in the market. It makes the LED control more convenience,
more hommization. We can use an Android system or IOS system mobile phone to install control software,
then it can control LED, this is the wishes of every customer.
Use WiFi technology can make our control range more wider, can get rid of narrow space constraint,
in building can control more than 50m, in outdoor can control more than 100m.
In the condition of not use the mobile software, also can use the remote control to control,
very convenience, bring many choices for you.
Package Include:
1 Piece of WF300 WiFi SPI DC 5 - 24V Leynew LED Controller
1 Piece of Product Manual
Great Choice for Green Life, CE and RoHS Approved
Great Choice for Green Life, CE and RoHS Approved
CE and RoHS approved
