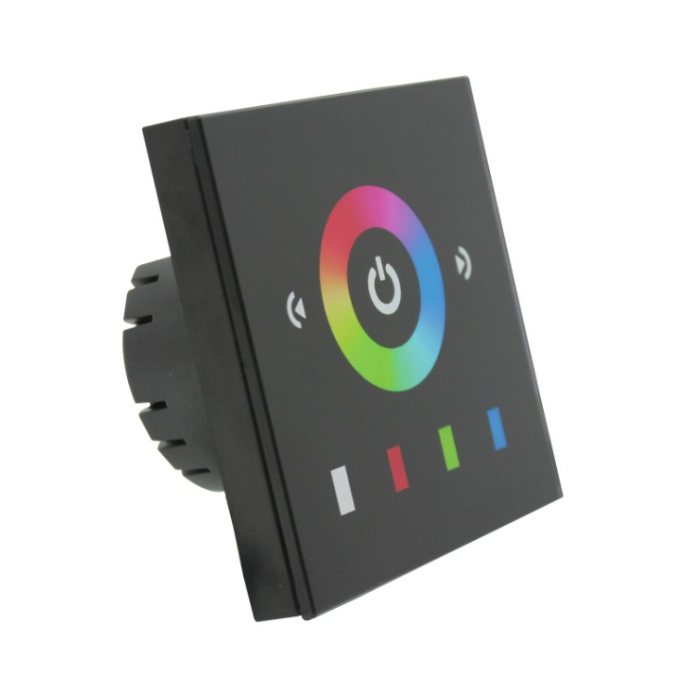

TM08 Touch Panel Full Color DC 12-24V 3 Channels Leynew LED Controller,Pls noted, this TM08
controller is also named TM1003-2.
Summarization
Touch panel controller is a new high-end controller which newly developed by our company. It
adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision
capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by
mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point
source of light,flexible light strip, wall washer lamp, panel lights etc., it has many advantages such
as convenient to connect, easy to use and others. According to the actual need of customers,it can
carry out jumpy changing,gradual changing,stroboflash and other effects of change.
Technical Parameters
Working temperature: -20-60 ℃
Supply voltage: DC12-24V
Output: 3 channels
Connection mode: common anode
External dimension: L86 Χ W86 Χ H36 mm
Packing size: L115Χ W110 Χ H56 mm
Net weight: 128g
Gross weight: 187g
Static power consumption: <1W
Output current: <4A( each channel )
Output power: 12V<144W,24V<288W
Package Include:
1 Piece of TM08 Touch Panel Full Color DC 12-24V 3 Channels Leynew LED Controller
1 Piece of Product Manual
Great Choice for Green Life, CE and RoHS Approved
CE and RoHS approved
