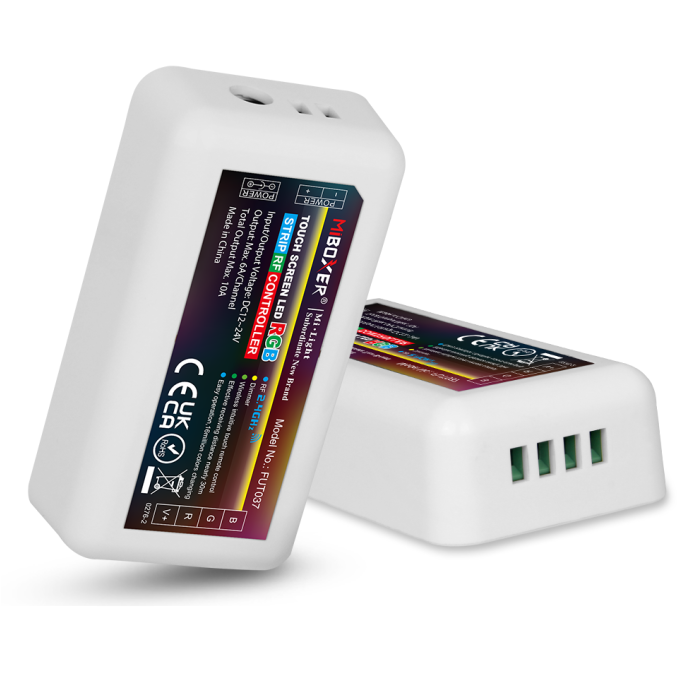

MiBoxer Mi.light FUT037 4-Zone Control RGB Strip Light Dimmable Cotroller Dimmer Control Driver Led
and the Mi.light New Wifi iBox Controller, you can control RGB LED Strip lights with
iOS 5.0 or Android smart phone App, free download from Apple App Store, or Android
Google Play with the new App name: Mi.light
With the technology of the 2.4G high frequency wireless remote control, it has the characteristics
of low power consumption, long distance transmission, and strong anti-interference ability, high
speed telecommunications, etc. The remote looks fashionable and elegant, with simple and practical
functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use.
Technical Data:
Size: 85 x 45 x 23mm
Working voltage: DC12-24V,
Input method: DC 5.5*2.1 Female connector input and 2 wire(+ -) input
Control way: R G B Three Channels (Red Green Blue )
Max Load per channel: 6A, total: 10A We highly suggest to use as 10A in total.
Output connection: Common anode
Telecontrol distance: 30 meters
The Controller will keep the last mode in memory by power switch on/off
Programs: 9 Kinds
Package included:
1 piece of Mi.Light FUT037 4-Zone 2.4G RGB LED Controller Dimmable for RGB Strip
1 piece of 3M Sticker
1 piece of user's manual
