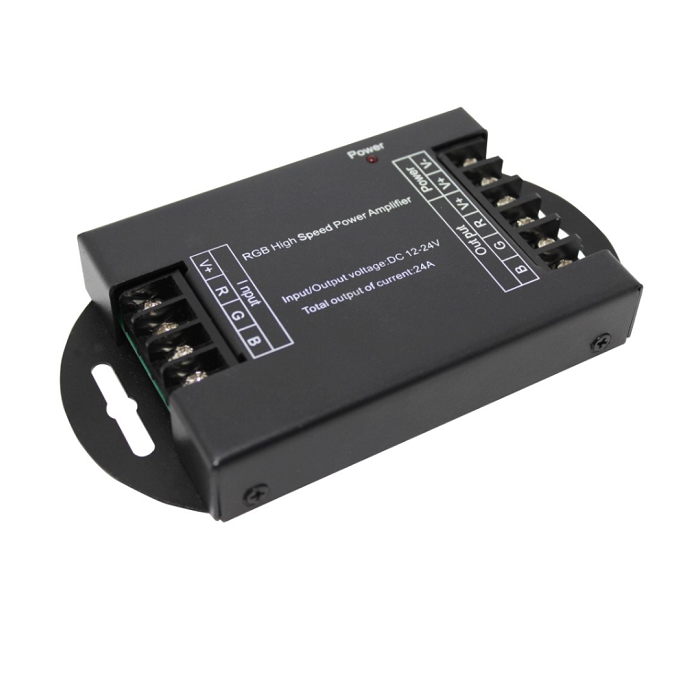

AP100 DC 12-24V High Speed Large Current Power Amplifier Leynew LED Controller
Summarization
High speed large current power amplifier, suit for PWM control led controller, it can amplify the power of LED controller, each time
add one amplifier, the connecting number of led will be more than twice to three times, and can cascade, in theory, numerous amplifiers
can be connected. It is convenience for different voltage, high power and small power LED lamps and lanterns unified control. Whether
our company's products or any other company's products, as long as it is PWM control, voltage appropriate, all can use this series
power amplifier. Using high speed light lotus root design, can achieve very low delay time, to ensure that when many sets of cascade, it can keep pace with host.
Technical parameters
Working temperature: -20-60 ℃
Working voltage: DC12V-24V
Signal voltage: DC12V-24V
Input signal: PWM dimming signal
Dimming range: 0.1%-100%
Net weight: 253.5g
Gross weight: 283.5g
External dimension: L145mm*W76.8mm*H20.5mm
Packing size: L155Χ W85 Χ H26 mm
Connect mode: common anode
Output current: <24A
Output power: 12V:<288W, 24V:<576W
Package Include:
1 Piece of AP100 DC 12-24V High Speed Large Current Power Amplifier Leynew LED Controller
1 Piece of Product Manual
